SCOPE OF DELIVERY(608295ENA)
HAND DRY CUTTER 8203E |
|
Carry case |
|
Ø 8"/48T carbide-tipped "LBS impact resistant" saw blade |
|
2x High-performance 18V LiHD 5,5A batteries |
|
Air-Cooled LiHD quick-charger 110V |
|

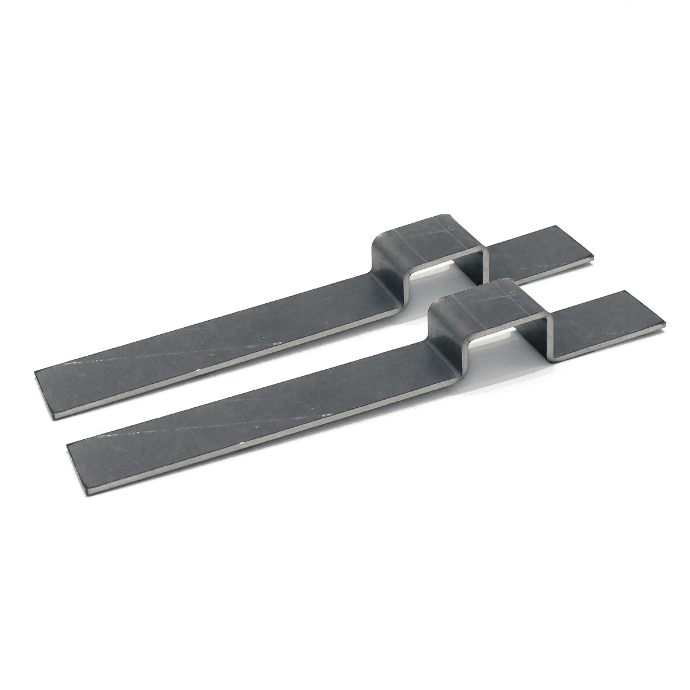

2x Adapter for guide rail 608275SET |
Cordless metal circular saw by Jepson Power for quick and burr-free sawing of sheet metal, grids, sandwich panels etc. without coolant.
There is no need for lubricants thanks to our
DRY CUT TECHNOLOGY
There is no need for lubricants thanks to our
DRY CUT TECHNOLOGY
- MADE IN GERMANY
- Ideal for cutting steel, metal sheet, sandwich panels, metal plates, tubes and profiles made of steel, non-ferrous materials and composites
- Equipped with a Ø 8"/48T carbide-tipped "LBS impact resistant" saw blade for maximum service life and quality
- 67 mm cutting depth
- Very long battery life thanks to the ultra-thin-walled, energy-efficient LBS saw blade
- Chip collector for clean work
Voltage | 18 V | |
No-load speed | 3.500 min-1 | |
Net weight | 12 lbs | |
Saw blade Ø | 8" | |
Sound pressure | 98,1 db(A) | |
Vibration | ah = 2,05 | |
Reference | 608295ENA |
FEATURES
CAS-Battery-technology
CAS = Cordless Alliance System
Ultra thin-walled LBS saw blade
Blade wall-thickness of 0,037" to minimize friction and maximize energy efficiency
For steel, sheet steel, sandwich panels, metal plates, steel tubes and profiles, non-ferrous materials and composites
Ideal for steel mesh and sheets with LBS "impact resistant" saw blade
Maximum cutting capacity
Material
|
square
|
rectangular
|
round
|
plane
|
90° cut
|
2 5/8“ x 1/4“ |
2 5/8“ x 2 5/8" x 1/4“ |
2 5/8“ x 1/4“ |
3/8“
|
45° cut (bevel)
|
1 5/8“ x 1/4“ |
1 5/8“ x 1 5/8" x 1/4“ |
1 5/8“ x 1/4“ |
5/16“
|
ACCESSORIES (OPTIONAL)
|
Description
|
Reference
|
E-Shop |
2x High-performance 18V LiHD 5,5A batteries |
608295EB
|
||
Air-Cooled LiHD quick-charger 110V
|
608295EC1 |
SAW BLADES
DRYTECH® carbide tipped saw blades Ø8" for HDC 8203E
fast and burr free cutting of metal without coolant!
ADVANTAGES OF OUR DRYTECH® SAW BLADES:
-
Universal use on all circular saws and cut-off saws
-
Very high durability
-
Excellent cutting quality
-
Thin walled with reduced noise
-
Resharpenable
Saw blade
|
Application |
Ø | Cutting width | Blade width |
Teeth
|
Reference
|
E-Shop |
LBS - IMPACT RESISTANT LEARN MORE |
thin-walled steel, composite materials, Sandwich panels |
8" |
0,050"
|
0,037" | 48 | 72220348 | |
STAINLESS STEEL |
Stainless steel, steel | 8" | 0,066" | 0,055" | 54 | 72120354I |
