MAGPRO 40 2S

MAGNETIC CORE DRILLING MACHINE

Odoo • Image and Text

Generous stroke of 6 1/2" (enables, among other things, the use of longer drills)

  • 2 speeds
  • Core drilling up to Ø 4 3/8" and twist drilling up to 1/2"
  • 17.000 N magnetic adhesion
  • Overload protection
  • Integrated cooling system

Scope of delivery: Lashing strap, coolant tank, tool, chip protection, carry case

Power input
10 amps
Voltage  115 V / 60 Hz
Magnet adhesion   17.000N
Net weight
29 lbs /13 kg
Reference
490142NA





Data Sheet & Spare Parts

Technical specifications

No load speed / full load speed 1: 650 / 465 min-1
2: 1100 / 790 min-1
Shank
3/4" / 19 mm Weldon

Core drill max. Ø x depth

1/2" - 1 1/2" x 4 3/8"
12 - 40 x 110 mm

 Twist drill max. Ø x depth

1/2" x 4"
13 x 100 mm

Stroke
3 3/8" / 85 mm for core drilling,
up to 6 1/2" / 165 mm for twist drilling
Magnetic base
6 5/8" x 3 3/8" / 170 x 85 mm
Coolant supply
integrated, automatic

Equipment

Products
 Description
Reference
E-Shop

HSS-CO core drill set  - 1" x  Ø 9/16", 5/8", 11/16",3/4", 13/16", 15/16" + ejector pin 1/4"x3"
                    490145IN

HSS-CO core drill set - 30 mm x Ø 12, 14, 16, 18, 20, 22 mm + ejector pin

490145

                              "GOLD FINGER" core drill set TiN-coated - 1" x Ø 9/16", 5/8", 11/16",3/4", 13/16", 15/16" + ejector pin 1/4"x3"
                     490145INTiN

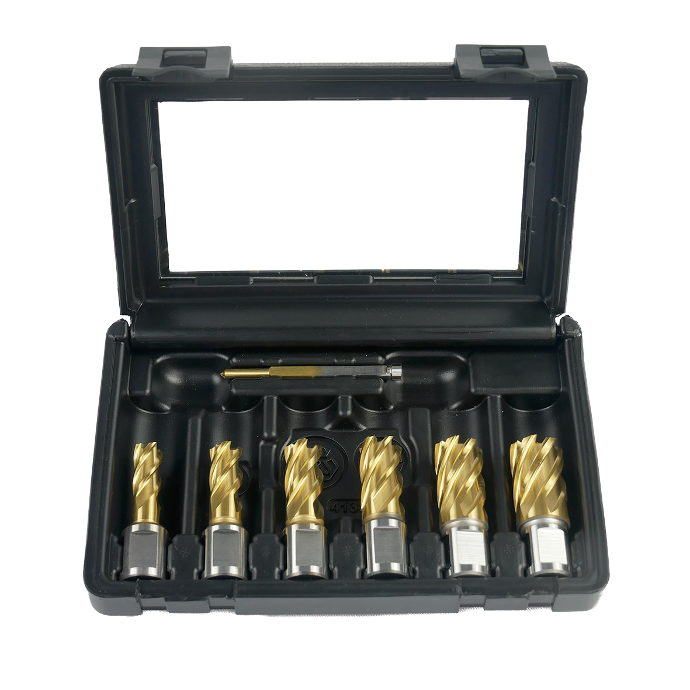

"GOLD FINGER" core drill set TiN-coated 30 mm x Ø 12, 14, 16, 18, 20, 22 mm + ejector pin


                   490145TiN
Drill chuck & Weldon adapter 1/2"
490152A

Adapter Weldon 3/4" / Fein Quick-in
490154

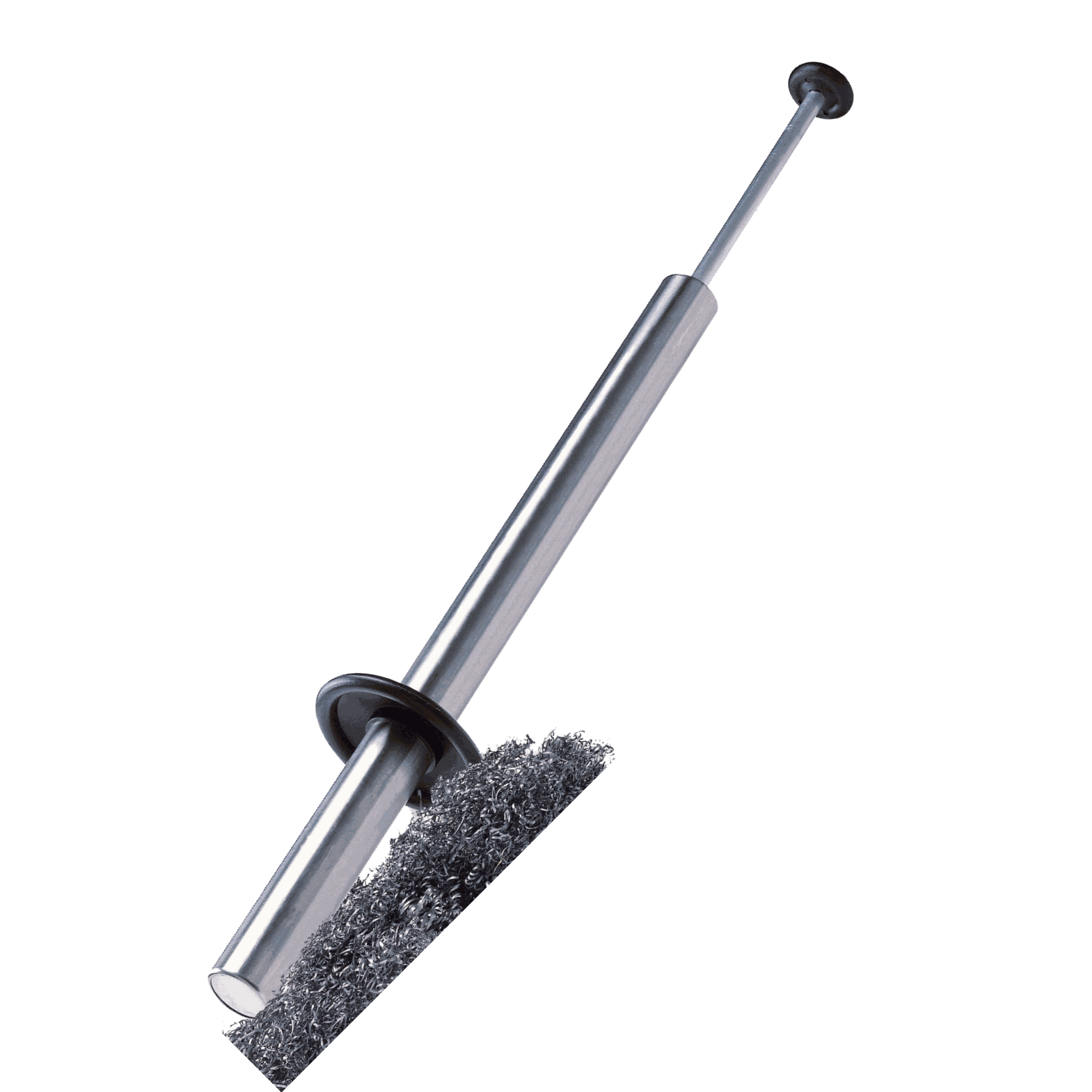

 Magnetic Chip Collector
490153

High performance cutting oil spray (400 ml)
490020

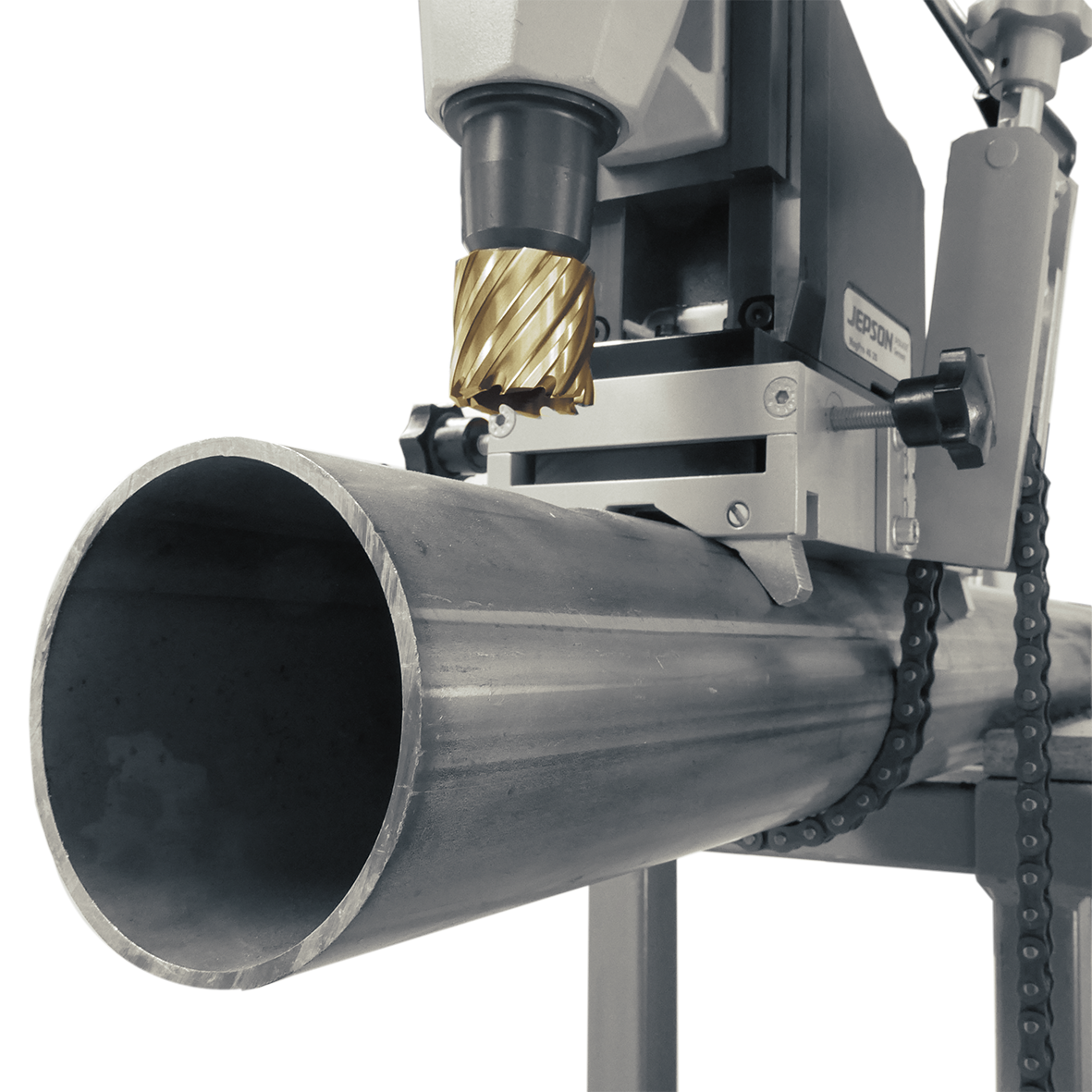

PIPEFIX for pipes Ø 3 1/8" - 9 7/8" (80mm - 250 mm)
490010
