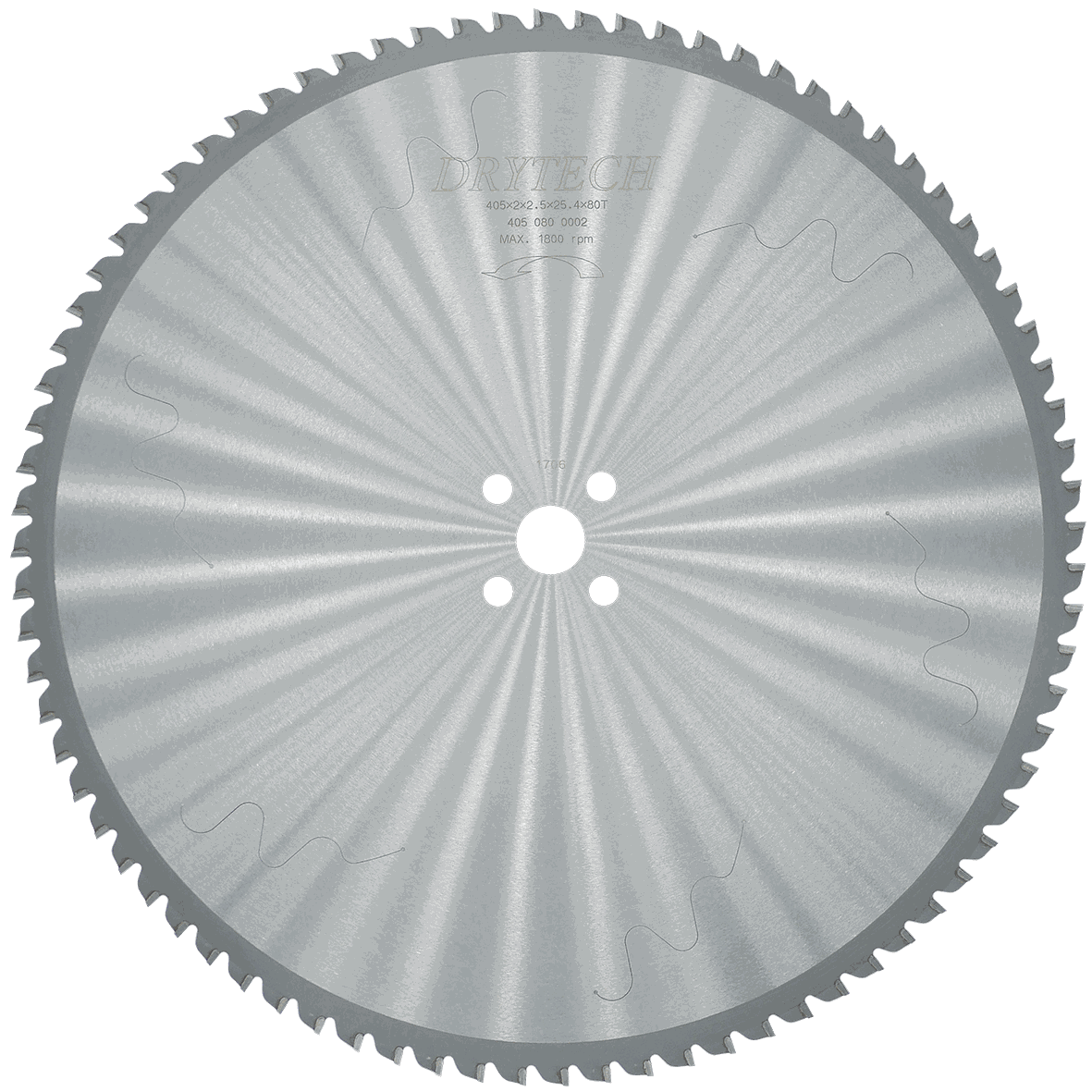

DRYTECH ® High-speed carbide tipped saw blades for metal
For industrial use - dry - fast - low-burr
DRYTECH ® Carbide or cermet tipped saw blades are suitable for high speed stationary semi-automatic and full automatic cutting units!
Fast cutting, burr free and without coolant of pipes and profiles made of: steel, stainless steel, plastics, compound materials, aluminum and other non-ferrrous metals.
Other advantages of our high-speed saw blades are:
-
Shortest cycle times due to high cutting speed
-
Material saving through thin cut technology with wall thickness starting from 0,5 mm
-
Very high durability
-
Excellent cutting quality
-
Up to 5 times resharpenable
-
Low set-up costs
-
Cost-effective
Available on request!
SPECIFICATIONS
|
saw blade diameter |
16" - 25" |
|
cutting capacity |
Ø 0,24" - 9,45"
|
|
cutting speed
|
max. 5906 ft / min
|
|
blade feed
|
max. 19,69 ft / min
|
|
cutting width (kerf)
|
0,098" - 0,157" |
|
centre hole
|
customer specific |
|
pin holes
|
customer specific
|
|
custom sizes
|
on request |
RANGE OF DRYTECH® SAW BLADES
| Ø [in] |
bore[in]
|
cutting width [in]
|
teeth |
reference |
| 16" |
1"
|
0,098"
|
80
|
4050800002
|
|
16"
|
1"
|
0,098"
|
102
|
4051021003
|
| 18" |
1,96"
|
0,134"
|
100
|
4551000002
|
| 18" |
1,96"
|
0,134"
|
120 |
4551201003
|
|
22"
|
1,96"
|
0,142" |
120
|
5601200002
|
|
22"
|
1,96"
|
0,142" |
132
|
5601321003
|
|
25"
|
2,36"
|
0,157" |
140
|
6301400002
|
|
25"
|
2,36"
|
0,157" |
150
|
6301501003
|
|
25"
|
2,36"
|
0,142"
|
210
|
6302100003
|
