DRYTECH® Carbide-tipped saw blades for metal
Can be used universally in the industrial sector and on all hand-held circular and chop saws
dry - fast - burr free
Our carbide and cermet-tipped saw blades are ideally suited for all (hand-held) circular and miter saws as well as high-speed stationary, semi and fully automatic saws.
They are ideal for fast and low-burr sawing of pipes and profiles made of steel, stainless steel, plastics, composite materials, aluminum and other non-ferrous metals without coolant
Other advantages of our high-speed saw blades are:
-
short cutting times thanks to high sawing speeds
-
material savings through thin-cut technology with wall thicknesses from 0,02" in
-
very long service life
-
excellent cut quality
-
up to 5 times resharpenable
Technical Data
|
blade diameter
|
5 3/8" - 14" |
|
cutting speed |
max. 5905 ft / min
|
|
cutting width |
0,059 - 0,079" (for steel)
|
|
centre bore |
customer specific |
|
pin bore
|
customer specific |
|
custom size |
on request
|
RANGE OF CARBIDE TIPPED SAW BLADES
| Ø [in] | bore [in] | cutting width [in] |
teeth
|
reference
|
application
|
e-shop |
| 5 3/8" |
0,78" |
0,059" |
30
|
72113730I
|
stainless steel |
|
| 6" |
0,78" |
0,059" |
42
|
72115042I
|
stainless steel |
|
| 6 1/4" |
1,18" *
|
0,071" |
32
|
72016032
|
steel |
|
| 6 1/2" |
0,78" |
0,067" |
48
|
72116548I
|
stainless steel |
|
| 7" |
0,78" |
0,073" |
48
|
72118048YS
|
steel & stainless steel |
|
| 7 1/2" |
0,78" |
0,073" |
40
|
719240
|
steel |
|
| 7 1/2" |
0,78" |
0,073" |
48
|
719248
|
steel (thin) |
|
| 7 1/2" |
0,78" |
0,073" |
48
|
719248A
|
aluminium
|
|
| 7 1/2" |
0,78" |
0,073" |
70
|
719270
|
metal sheets |
|
| 8" |
1,18" *
|
0,075" |
40
|
72020040
|
steel |
|
| 8" |
1,18" *
|
0,075" |
60
|
72020060
|
steel (thin) |
|
| 8" |
1" |
0,075" |
42
|
72120342I
|
stainless steel
|
|
| 8" |
1" |
0,075" |
48
|
72120048AD
|
aluminium
|
|
| 8" |
1" |
0,075" |
70
|
72120070
|
steel (thin wall)
|
|
| 8 1/4" |
1,18" *
|
0,079" |
42
|
72021042
|
steel |
|
| 8 1/4" |
1,18" *
|
0,079" |
64
|
72021064
|
steel (thin) |
|
| 9" |
1,18" *
|
0,079"
|
48
|
72023048
|
steel |
|
|
9"
|
1,18" *
|
0,079"
|
60
|
72023060
|
aluminium
|
|
|
9"
|
1,18" *
|
0,079"
|
68
|
72023068
|
steel (dünn) |
|
|
9"
|
1"
|
0,079"
|
48
|
72123048
|
steel
|
|
|
9"
|
1"
|
0,079"
|
60
|
72123060
|
aluminium
|
|
|
9"
|
1"
|
0,079"
|
68
|
72123068
|
steel - thin |
|
|
9"
|
1"
|
0,079"
|
84
|
72123084
|
metal sheets
|
|
| 10" |
1" |
0,079"
|
60
|
600598
|
steel
|
|
| 10" |
1"
|
0,079"
|
66
|
600654
|
steel (thin)
|
|
|
12"
|
1"
|
0,079" |
60
|
600530
|
steel
|
|
|
12"
|
1"
|
0,079" |
60
|
600530 40
|
steel & stainless steel
|
|
|
12"
|
1"
|
0,079" |
60
|
600535
|
cast iron
|
|
|
12"
|
1"
|
0,079" |
80
|
600540
|
steel (thin)
|
|
|
12 5/8"
|
1"
|
0,079" |
84
|
608276
|
steel
|
|
|
14"
|
1"
|
0,079" |
120
|
600512I
|
steel & stainless steel (thin wall)
|
|
|
14"
|
1"
|

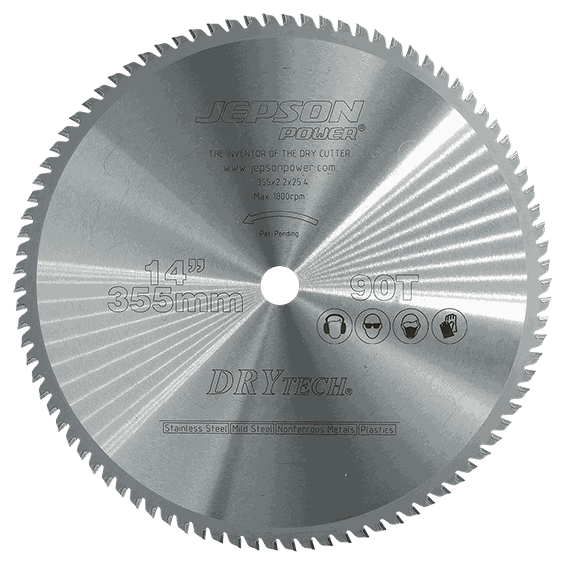

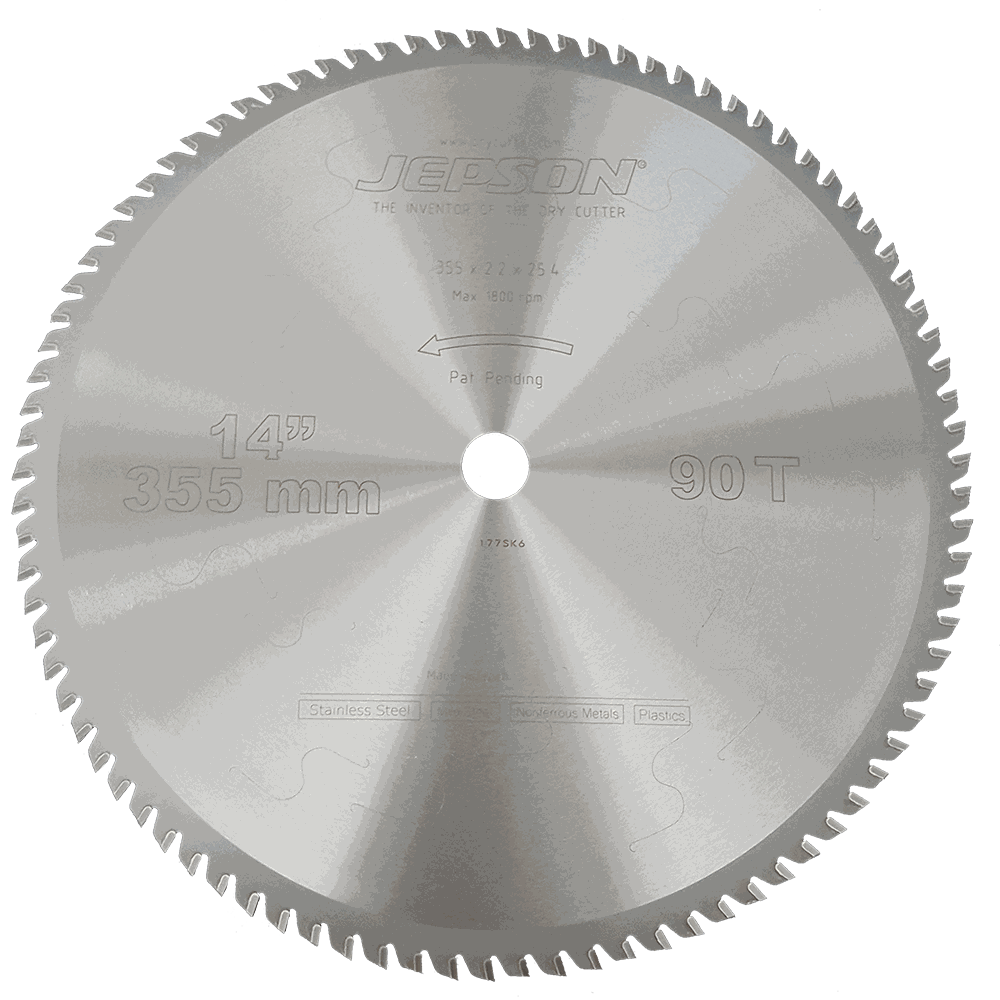

0,079" |
90
|
600570
|
steel & stainless steel
|
|
|
14"
|
1"
|
0,079" |
72
|
600580
|
steel & stainless steel
|
|
|
14"
|
1"
|
0,079" |
60
|
600590
|
steel & stainless steel
|
|
|
14"
|
1"
|
0,079" |
60
|
600591
|
cast iron
|
|
|
14"
|
1"
|
0,079" |
96
|
600594
|
aluminium
|
|
|
14"
|
1"
|
0,079" |
66
|
600595
|
steel |
|
|
*Reduction rings 30/25, 30/20, 30/16, included in the scope of delivery
|
|
|||||
|
|
SAW BLADES > Ø 405mm (on request)
| Ø [in] |
bore [in]
|
cutting width [in]
|
teeth
|
refernce
|
| 16" |
1"
|
0,098"
|
80
|
4050800002
|
| 16" |
1"
|
0,098" |
102
|
4051021003
|
| 18" |
1,96"
|
0,134" |
100
|
4551000002
|
| 18" |
1,96"
|
0,134" |
120 |
4551201003
|
| 22" |
1,96"
|
0,142" |
120
|
5601200002
|
|
22"
|
1,96"
|
0,142" |
132
|
5601321003
|
|
25"
|
2,36"
|
0,157"
|
140
|
6301400002
|
| 25" |
2,36"
|
0,157" |
150
|
6301501003
|
| 25" |
2,36"
|
0,142" |
210
|
6302100003
|
