No need for lubricants or manual deburring
2 vibration dampers for high cutting quality
and downtime
High-torque motor for continuous operation
Patented quick release system for adjustable
Miter cuts from 90-75-60-45°
Equipped with a Ø 14"/90T HM saw blade
Optional assembly stand with length stop for comfortable and safe working
 | power input | 21 amps |
 | voltage | 115V/60Hz |
 | no load speed | 1.400 rpm |
 | net weight | 56 lbs |
 | saw blade diameter | Ø 14" |
 | sound pressure | 100 db(A) |
 | vibration | 3,9 ft/s² |
 | cable length | 8,2 ft |
 | reference | 600560US T3 |
FEATURES
"K" clamping device for square tubes
for a safer and more stable sawing process
quick release clamping system
enables precise and efficient clamping
rip fence
increases stability - makes sawing short materials easier
tool-free adjustable miter cuts
from 90-75-60-45°
|
material
|
square
|
rectangular
|
round |
|
90° cut
|
4.921" x 4.921" | 4.133" x 6.102" | 5.511" Ø140 / in Inox 125 |
| 45° cut |
3.149" x 3.149"
|
2.952" x 2.937" |
4.724" / Ø102 |
EQUIPMENT & SETS
assembly stand PSDC 9435
Assembly stand with length stop for comfortable and safe work
-
adjustable material support
-
length stopper with integrated scale
-
adjustable feet to compensate for irregularities in the floor
reference. 600526T3

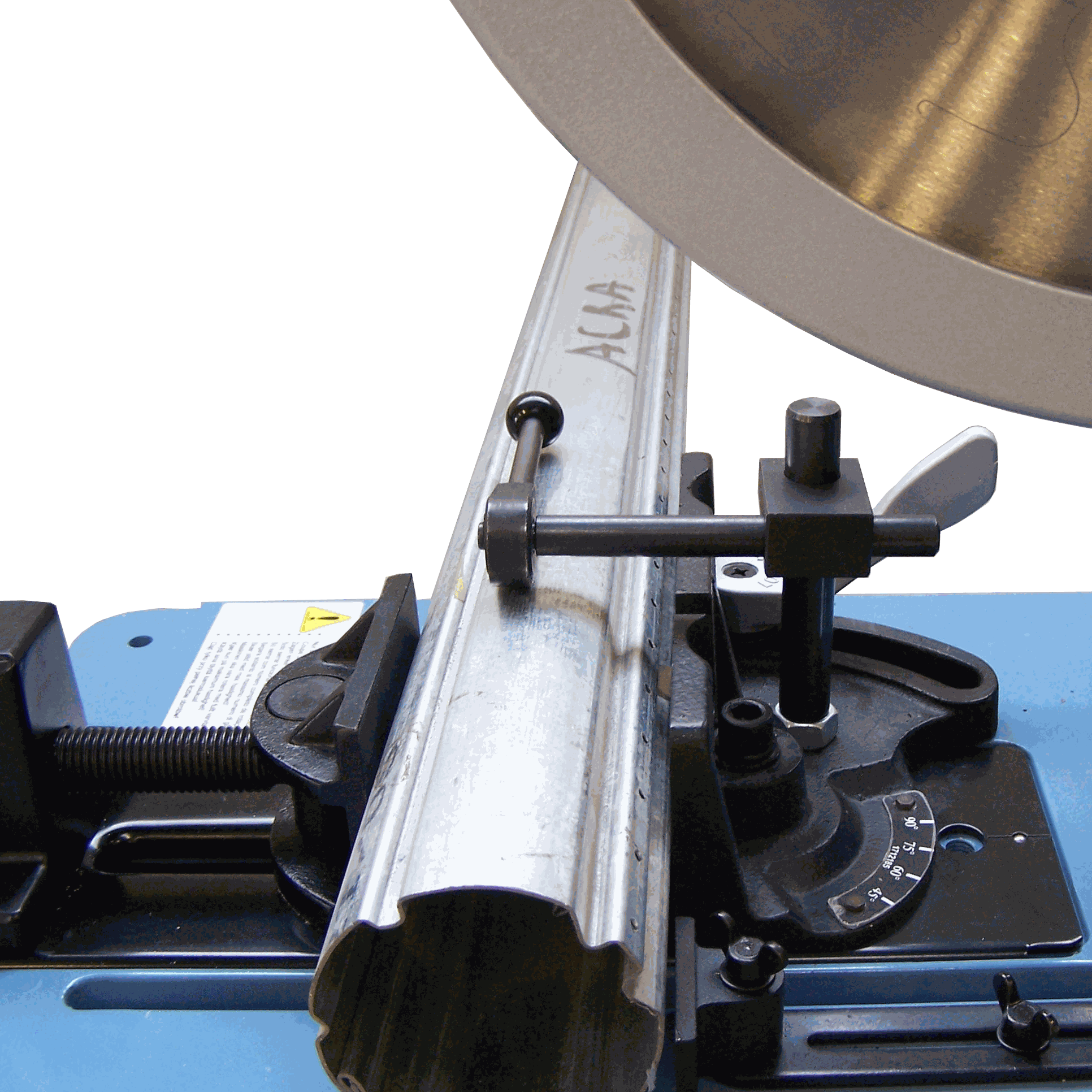

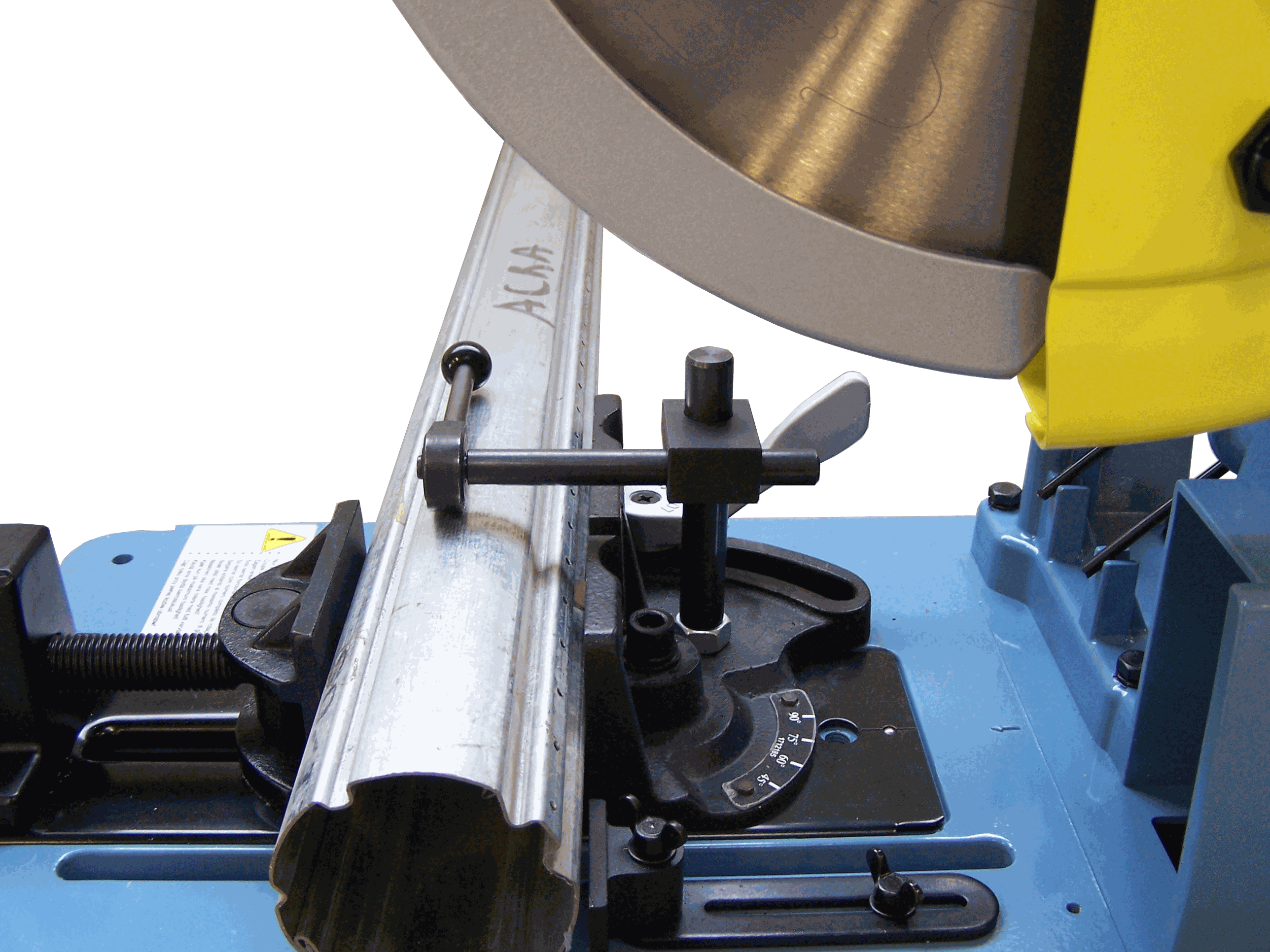

Eccentric clamping system
Since the clamping pressure is exerted by two separate systems, deformation of the workpiece is prevented.
Simplifies the clamping of thin-walled profiles

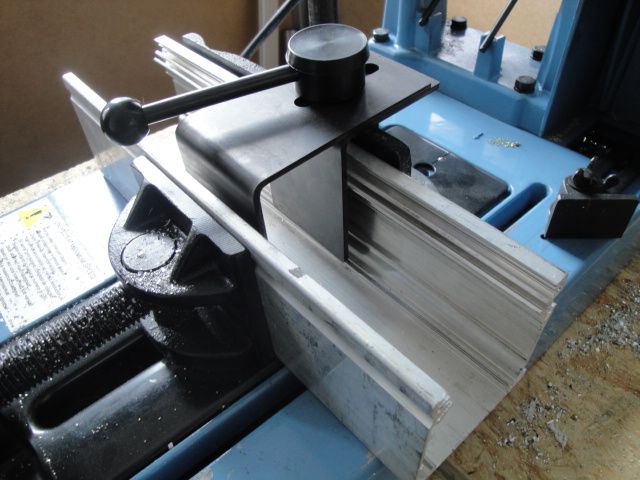

Thinfix - clamping system for open profiles
Prevents material deformation during clamping.Reduces vibrations during the sawing process.
The result is an improvement in cutting surface and increased cutting life.
reference. 600546
|
set
|
description
|
reference |
e-shop
|
|
|
PSDC 9435 with Ø 14" / 90T saw blade
|
600560US T3
|
|
+

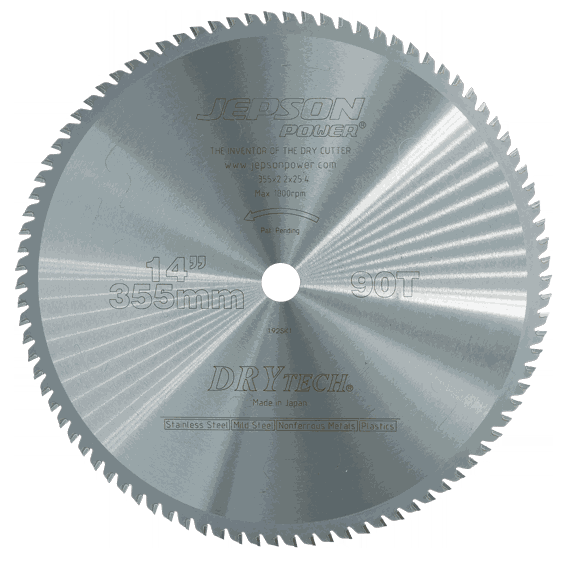

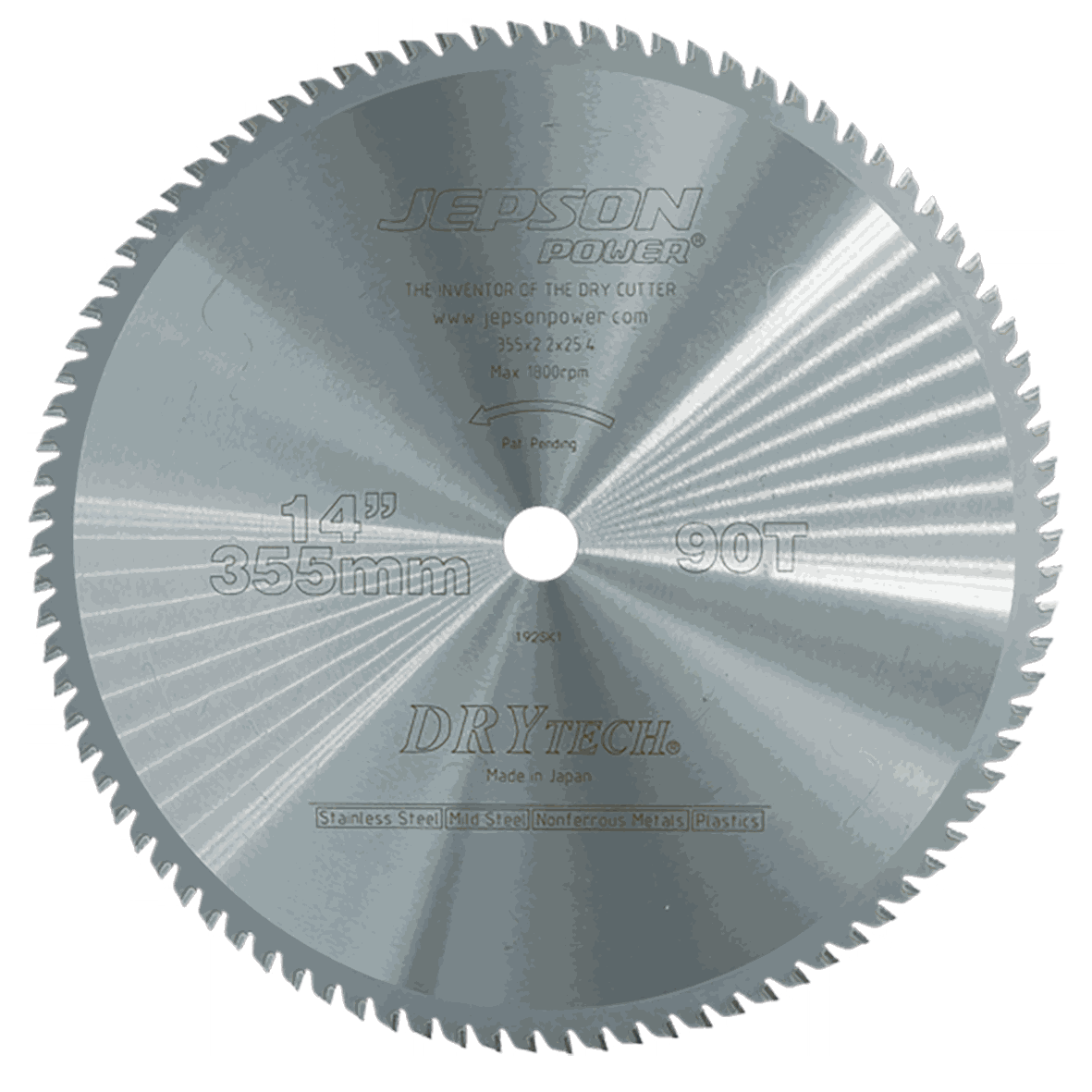

DRYTECH® Carbide tipped saw blade
Ø 14" for
PSDC 9435
Fast and low-burr sawing of metal without cooling
ADVANTAGE OF OUR DRYTECH ® SAW BLADES:
- universal use with all circular and cutting saws
- very high durability
- outstanding cutting quality
- thin walled
-
resharpenable
|
saw blades
|
application
|
Ø [in] | cutting width [in] | blade strength [in] |
teeth
|
reference
|
E-Shop |
| STANDARD | steel & inox (thin-walled) | 14" | 0,087 | 0,071 |
90 | 600570 | |
|

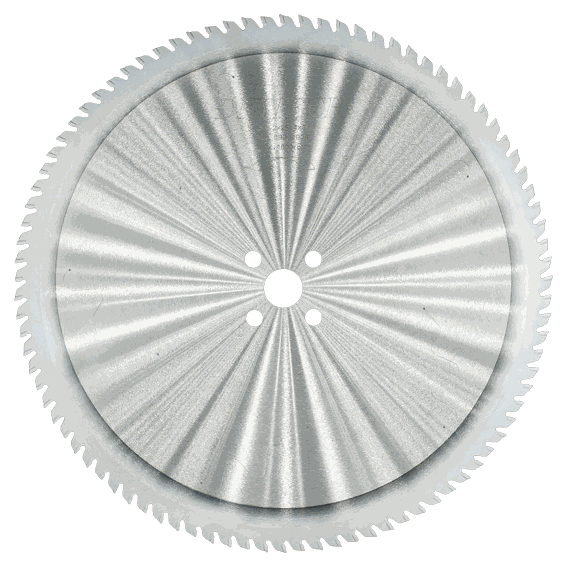

SPECIAL-COATED LEARN MORE |
inox, steel, food & construction | 14" | 0,087 | 0,071 | 90 | 600570NSF | |
| FOR EXTRA THIN WALL MATERIAL | steel & inox (extra thin-walled) | 14" | 0,087 | 0,071 | 120 | 600512I | |
| FOR INOX | steel & inox | 14" | 0,087 | 0,071 | 72 | 600580 | |
| FOR THICK-WALLED MATERIAL | steel (thick-walled) | 14" | 0,087 | 0,071 | 60 | 600590 | |
|
FOR CAST IRON
|
cast iron | 14" | 0,087 | 0,071 | 60 | 600591 | |
| FOR ALUMINIUM | Aluminium | 14" |
0,133
|
0,118
|
96 | 600594 | |
|
FOR CARBON STEEL
|
steel | 14" | 0,087 | 0,071 | 66 | 600595 |
