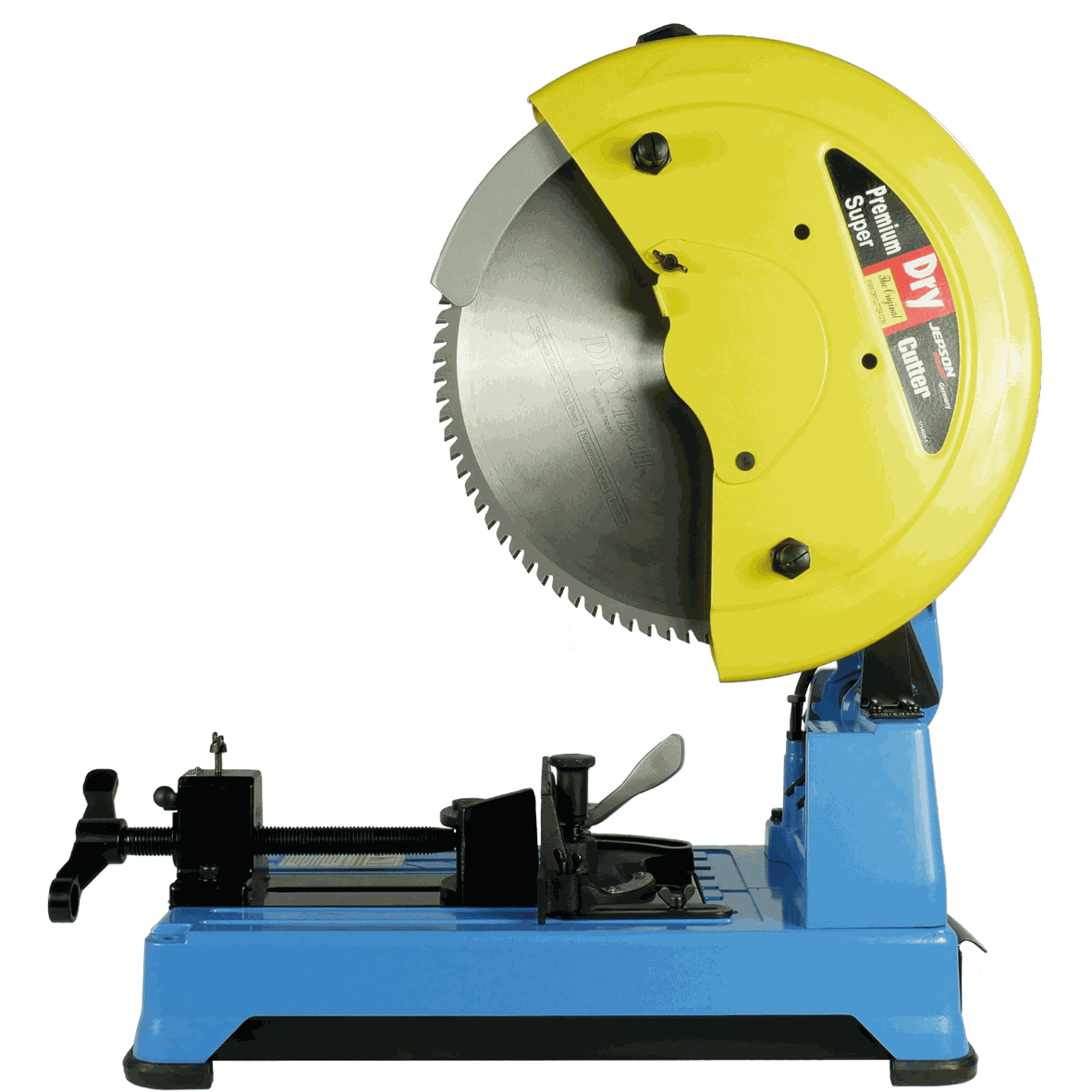

PREMIUM SUPER DRY CUTTER 9435 T3

METAL CIRCULAR SAW with Ø 14" / 90T saw blade for steel & stainless steel

Ideal for sawing pipes and profiles made of stainless steel, steel, non-ferrous metals, plastics and composite materials

No need for lubricants or manual deburring

2 vibration dampers for high cutting quality
and downtime


High-torque motor for continuous operation

Patented quick release system for adjustable
Miter cuts from 90-75-60-45°


Equipped with a Ø 14"/90T HM saw blade

Optional assembly stand with length stop for comfortable and safe working

power input21 amps
voltage
115V/60Hz
no load speed1.400 rpm
net weight
56 lbs
saw blade diameter Ø 14"
sound pressure
100 db(A)
vibration 3,9 ft/s²
cable length
8,2 ft
reference600560US T3







FEATURES


"K" clamping device for square tubes

for a safer and more stable sawing process


quick release clamping system

enables precise and efficient clamping


rip fence

increases stability - makes sawing short materials easier


tool-free adjustable miter cuts

from 90-75-60-45°

maximum working space in inches

material
square
rectangular
round
90° cut
4.921" x 4.921" 4.133" x 6.102" 5.511" Ø140 / in Inox 125
45° cut 3.149" x 3.149"
2.952" x 2.937"

4.724" / Ø102

EQUIPMENT & SETS

Odoo • Image and Text
Odoo • Image and Text

assembly stand PSDC 9435

Assembly stand with length stop for comfortable and safe work

  • adjustable material support

  • length stopper with integrated scale

  • adjustable feet to compensate for irregularities in the floor

reference. 600526T3





Odoo • Image and Text
Odoo • Image and Text

Eccentric clamping system

Since the clamping pressure is exerted by two separate systems, deformation of the workpiece is prevented.

Simplifies the clamping of thin-walled profiles

reference. 609910







Odoo • Image and Text
Odoo • Image and Text

Thinfix - clamping system for open profiles

Prevents material deformation during clamping.
Reduces vibrations during the sawing process.


The result is an improvement in cutting surface and increased cutting life.

reference. 600546





set
description
reference     e-shop

+

PSDC 9435 with  Ø 14" / 90T saw blade
600560US T3

SAW BLADES

DRYTECH® Carbide tipped saw blade   Ø 14" for PSDC 9435
Fast and low-burr sawing of metal without cooling

ADVANTAGE OF OUR DRYTECH ®  SAW BLADES:

  • universal use with all circular and cutting saws
  • very high durability
  • outstanding cutting quality
  • thin walled
  • resharpenable
saw blades
application
Ø [in] cutting width [in] blade strength [in] teeth
reference
E-Shop
STANDARD steel & inox (thin-walled) 14" 0,087 0,071
90 600570
SPECIAL-COATED
LEARN MORE
inox, steel, food & construction 14" 0,087 0,071 90 600570NSF
FOR EXTRA THIN WALL MATERIAL steel & inox (extra thin-walled) 14" 0,087 0,071 120 600512I
FOR INOX steel & inox 14" 0,087 0,071 72 600580
FOR THICK-WALLED MATERIAL steel (thick-walled) 14" 0,087 0,071 60 600590
FOR CAST IRON
cast iron 14" 0,087 0,071 60 600591
FOR ALUMINIUM Aluminium 14" 0,133
0,118
96 600594
FOR CARBON STEEL
steel 14" 0,087 0,071 66 600595
