![SHDC8320 SHDC8320](/web/image/571411-c0b3061b/608270.png)

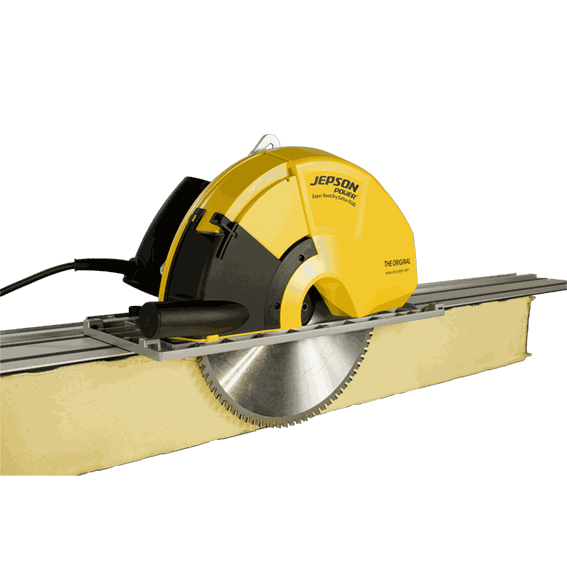

Ideal for cutting sandwich panels, trapezoidal sheets, cable ducts, steel pipes, ferrous and non-ferrous metals, composite materials, etc. up to a cutting depth of 4,7 in on the guide rail.
Dry cut without lubricant![](/web/image/226116/Ecofriendly.png)
Closed design prevents chips from flying to the user
Integrated chip tipping compartment, connection for optional suction device, LED overload indicator.
Delivery incl. Ø 12 5/8" / 84T carbide saw blade
Dry cut without lubricant
![](/web/image/226116/Ecofriendly.png)
Closed design prevents chips from flying to the user
Integrated chip tipping compartment, connection for optional suction device, LED overload indicator.
Delivery incl. Ø 12 5/8" / 84T carbide saw blade
![]() | power input | 16 amps |
![]() | voltage | 115V/60Hz |
![]() | no load speed | 1.700 rpm |
![]() | net weight | 18,5 lbs |
![]() | saw blade diameter | Ø 12 5/8" |
![]() | sound pressure | 99 db(A) |
![]() | vibration | 4,6 ft/s² |
![]() | cable length | 16,4 ft |
![]() | reference | 608270US |
FEATURES
ideal for sandwich panels
up to 4,7 in cutting depth
![](/web/image/232808/shdc_schnittbeispiele.png)
cutting examples
sandwich panels, steel profiles, ...
![](/web/image/232806/SHDC_Cuttingdepth.jpg)
depth setting with scaling
![](/web/image/233516/SHDC8320_F%C3%BChrungdsschienenset_608275SET.jpg)
quick release clamp for guide rail
Maximum working space in inches
material
|
square
|
rectangular
|
around
|
sheet metal
|
90° cut
|
4,7 x 0,5
|
4,7 x 0,24
|
4,7 x 0,24 |
0,4 |
EQUIPMENT & SETS
equipment |
description
|
reference | e-shop |

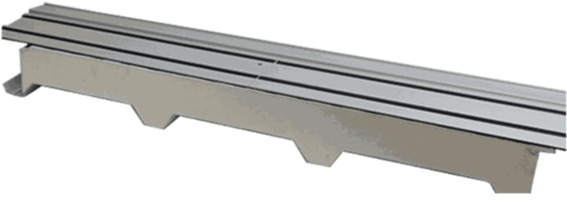

guide rail set 4ft 7"
Guide rail 4ft 7" with 2 quick release clamps
Ideal for cutting sandwich panels |
608275SET |
||
|

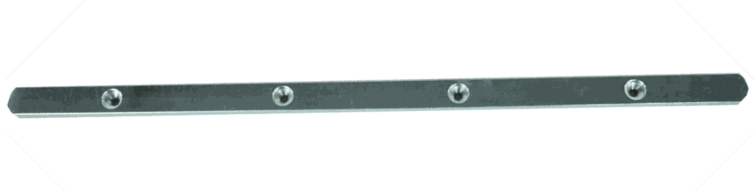

connector for connecting multiple guide rails
|
608275B | |
|

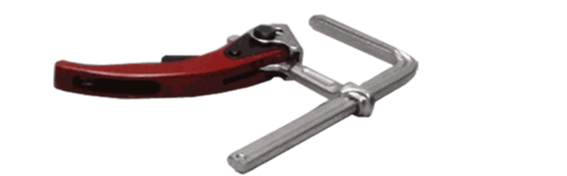

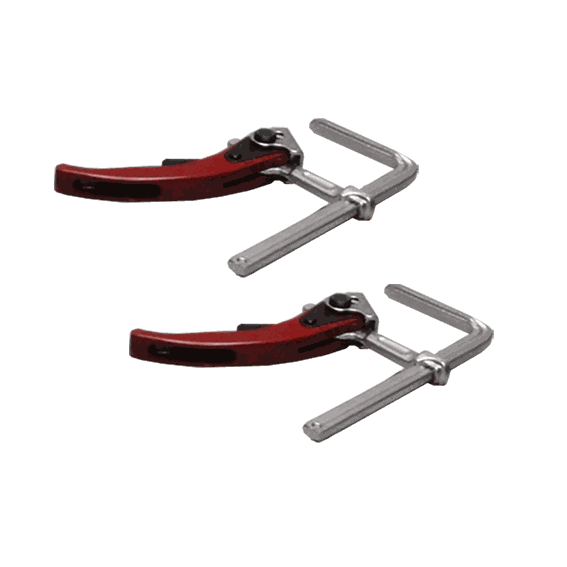

quick release clamps for guide rail (2 pieces)
|
608275S | |
|

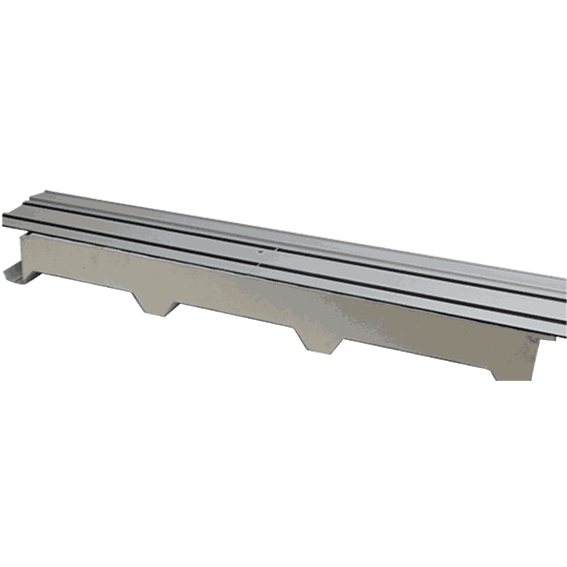

guide rail 4ft 7" (without quick release clamps) | 608275D | |
|

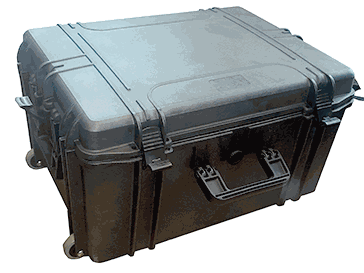

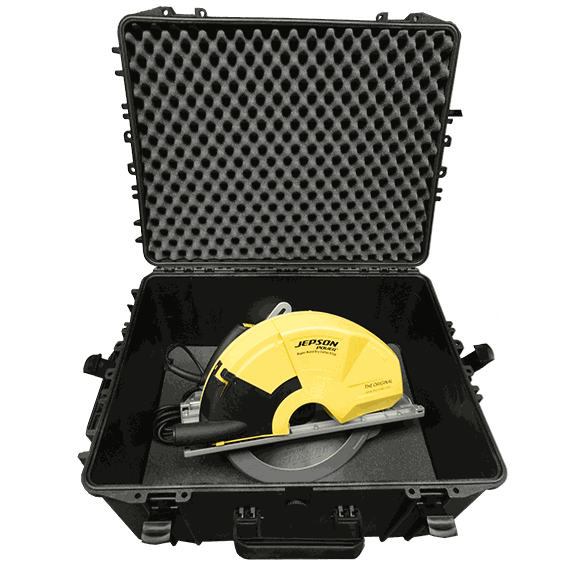

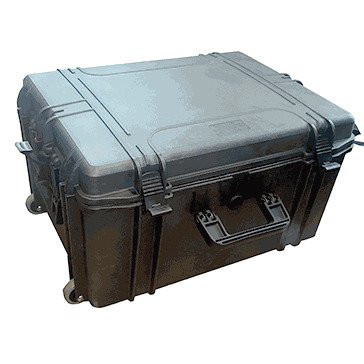

transport case with wheels
Professional high-performance case for maximum protection during storage and transport.
Easy and convenient transport of the machine for a clean and economical workplace. |
60827BOX |
SET
|
description
|
reference |
e-shop
|
|
SHDC 8320 with 12 5/8" / 84T saw blade
|
608270US
|
|
|

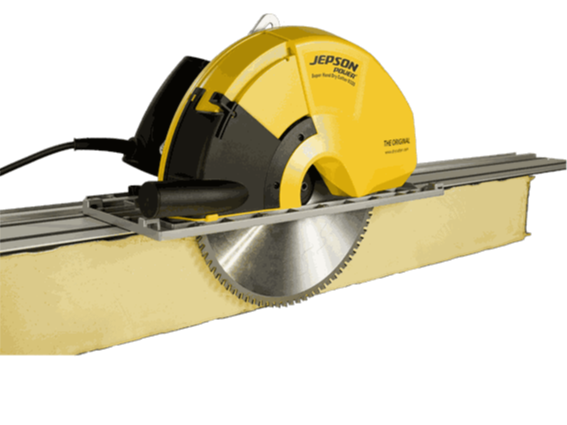

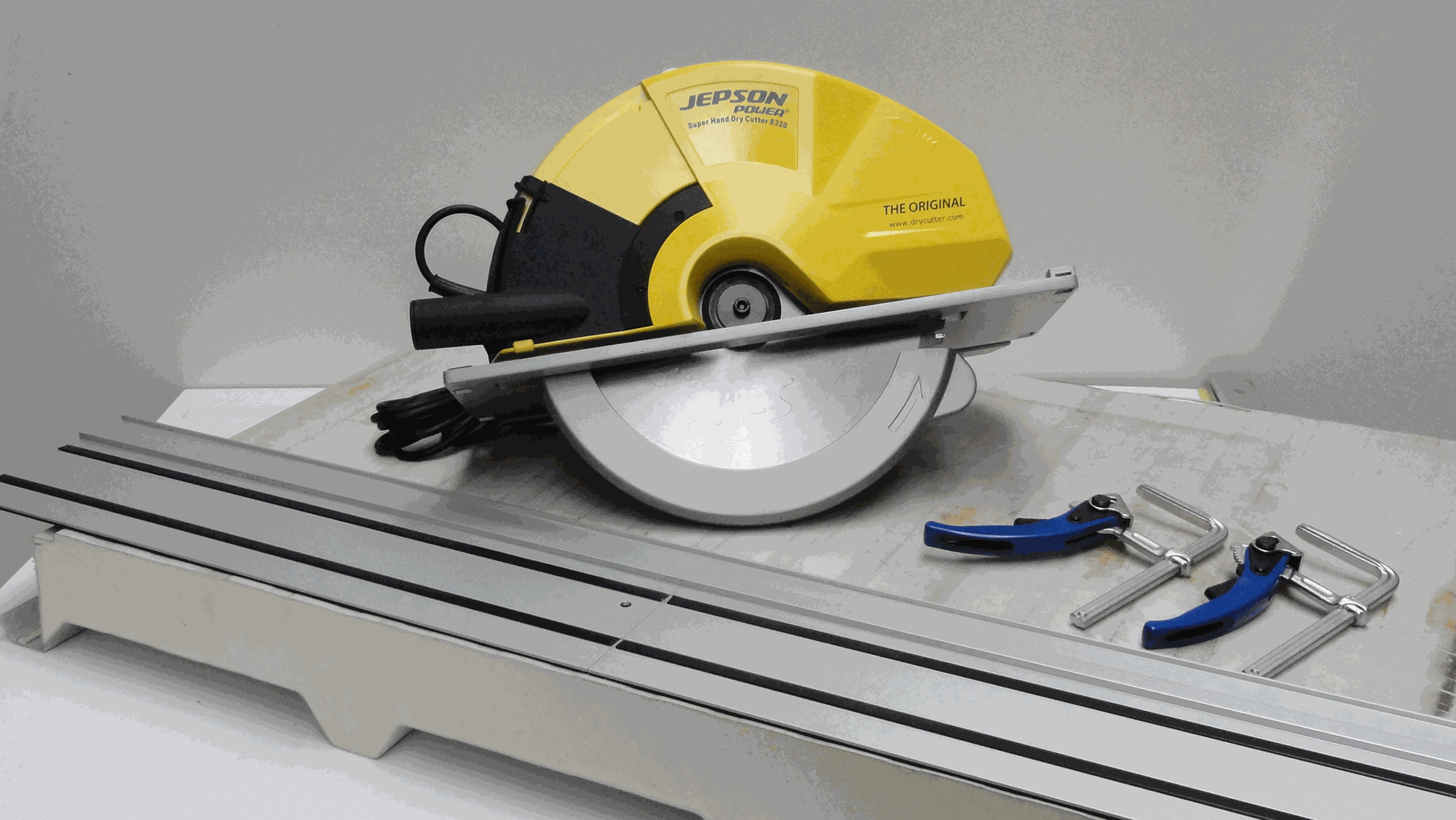

SHDC 8320 with 12 5/8" / 84T saw blade & guide rail set 4ft 7" |
608270USET
|
SAW BLADES
DRYTECH® CARBIDE SAW BLADES Ø12 5/8" for SHDC 8320
Fast and low-burr cutting of metal without cooling
ADVANTAGES OF OUR DRYTECH ® SAW BLADES:
- universal use with all circular and cutting saws
- very high durability
- excellent cutting quality
- thin walled
- resharpenable
saw blades
|
application
|
Ø [in] | cutting width [in] | blade strength [in] |
teeth
|
reference
|
e-shop |

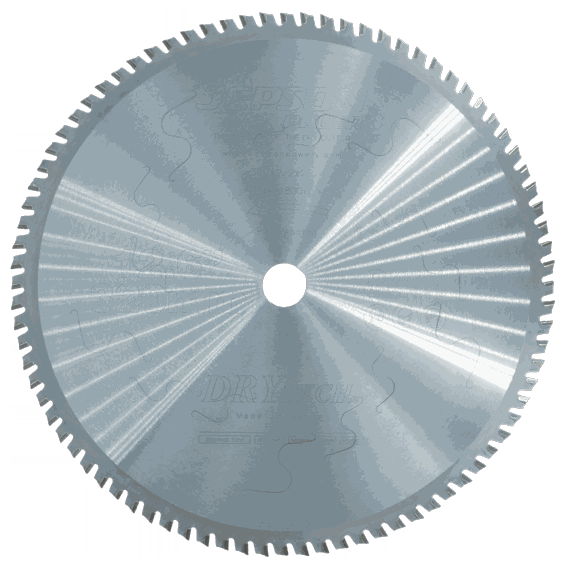

STANDARD | steel, composite materials, sandwich panels |
12 5/8 | 0,086 | 0,070 | 84 | 608276 | |

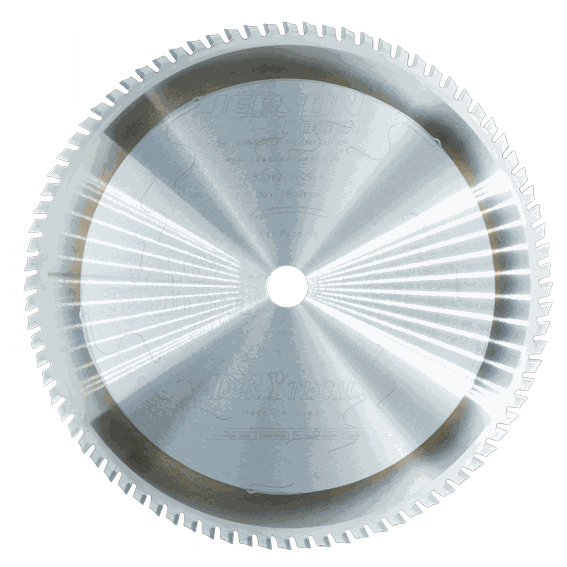

SPECIAL-COATING | stainless steel, steel, composite materials, sandwich panels | 12 5/8 | 0,086 | 0,070 | 84 | 608276NSF | |
FOR THIN-WALLED MATERIAL
|
steel (heavy-walled), composite materials |
12 5/8 | 0,086 | 0,070 | 72 | 608278 | |
FOR ALUMINUM
|
Aluminum |
12 5/8 | 0,086 | 0,070 | 72 |
608278A
|
