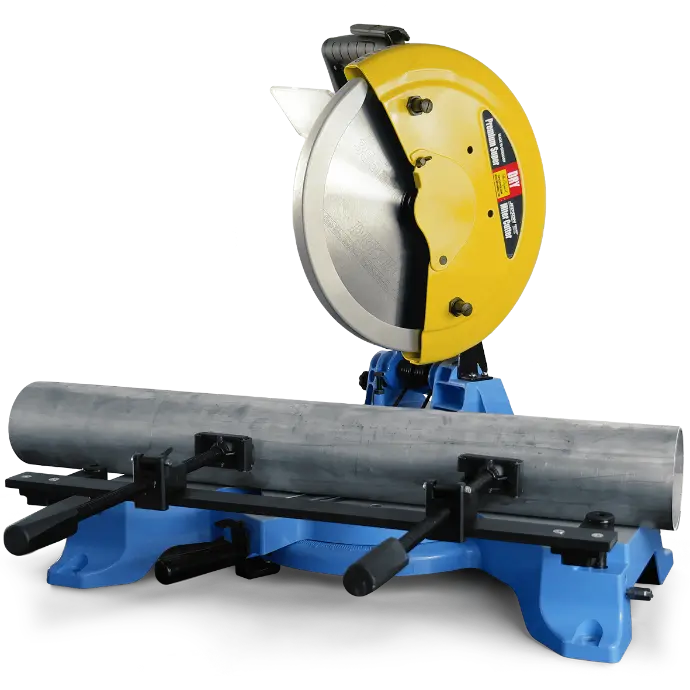

PREMIUM SUPER DRY MITER CUTTER 9414
I NCL. Ø 14"/90T SAW BLADE FOR STEEL & STAINLESS STEEL + CLAMPING SET „K“ FOR PIPES
Lubricants and manual deburring are no longer necessary
thanks to dry cutting technology
- Ideal for cutting ferrous and non-ferrous metal pipes, tubes, and profiles made of construction steel, stainless steel, aluminum, plastics, and composites
- No need for lubricants or manual deburring
- Two patented vibration dampers
- High-torque motor for continuous operation
- Miter angle infinitely adjustable from -45° to 0° to +45°
- Extreme power with minimal weight thanks to the die-cast base plate: Only 59.5 lbs
|
Power input
|
15 amps |
|
Voltage
|
115/60Hz |
|
No load speed
|
1.400 min-1 |
|
Net weight
|
59.5 lbs
|
|
Blade size
|
14" |
|
Sound pressure
|
100 db(A) |
|
Vibration | 1,19 m/s² |
|
Cable length
|
8.2 ft
|
|
Ref. |
600514NA
|
FEATURES
3-point locking
For optimale sawing position
Stepless miter adjustment
Fixing set "K" for pipes (INCLUDED)
(Ref. 600653)
Thinfix Clamping System (INCLUDED)
for open profiles
(Ref. 600645)
|
Material
|
Square
|
Rectangular
|
Round Ø
|
|
90° cut
|
5" x 5" | 4 1/8" x 6 1/8" | 5 1/2" (5" for stainless steel) |
| 45° cut | 3 1/8" x 3 1/8" | 3" x 4" |
4"
|
ACCESSORIES (OPTIONAL)
Thinfix - Clamping System for open profiles
Simplifies the clamping of thin-walled profiles.
Since the clamping pressure is exerted by two separate systems, deformation of the workpiece is prevented.
Ref. 600546
|
SET
|
Description
|
Reference
|
E-Shop
|
|
|
PSDMC 9414 with 14" / 90T
saw blade
|
600514NA
|
|
+
DRYTECH® Carbide tipped
saw blades
Ø14"
for
PSDMC 9414
Fast and low-burr sawing of metal without cooling
ADVANTAGE OF OUR DRYTECH ® SAW BLADES:
- universal use with all circular and cutting saws
- very high durability
- outstanding cutting quality
- thin walled
-
resharpenable
|
saw blades
|
application
|
Ø [in] | cutting width [in] | blade strength [in] |
teeth
|
reference
|
E-Shop |
| STANDARD | steel & inox (thin-walled) | 14" | 0,087 | 0,071
|
90 | 600570 | |
|
SPECIAL-COATED
LEARN MORE |
inox, steel, food & construction | 14" | 0,087 | 0,071 | 90 | 600570NSF | |
| FOR EXTRA THIN WALL MATERIAL | steel & inox (extra thin-walled) | 14" | 0,087 | 0,071 | 120 | 600512I | |
| FOR INOX | steel & inox | 14" | 0,087 | 0,071 | 72 | 600580 | |
| FOR THICK-WALLED MATERIAL | steel (thick-walled) | 14" | 0,087 | 0,071 | 60 | 600590 | |
|
FOR CAST IRON
|
cast iron | 14" | 0,087 | 0,071 | 60 | 600591 | |
| FOR ALUMINUM | aluminum | 14" |
0,133
|
0,118
|
96 | 600594 | |
|
FOR CARBON STEEL
|
steel | 14" | 0,087 | 0,071 | 66 | 600595 |
