The

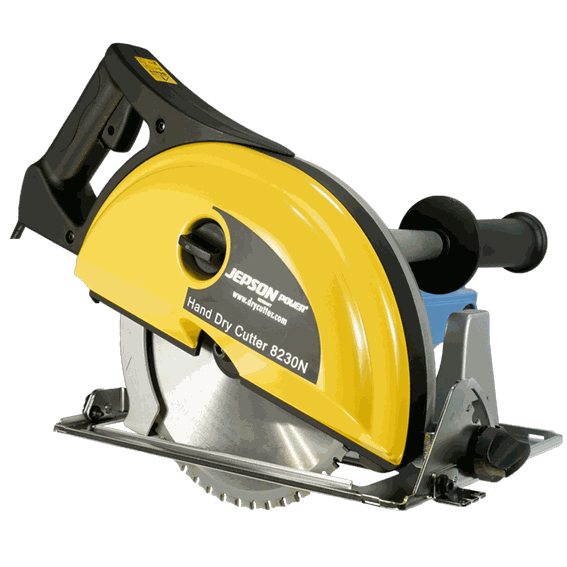

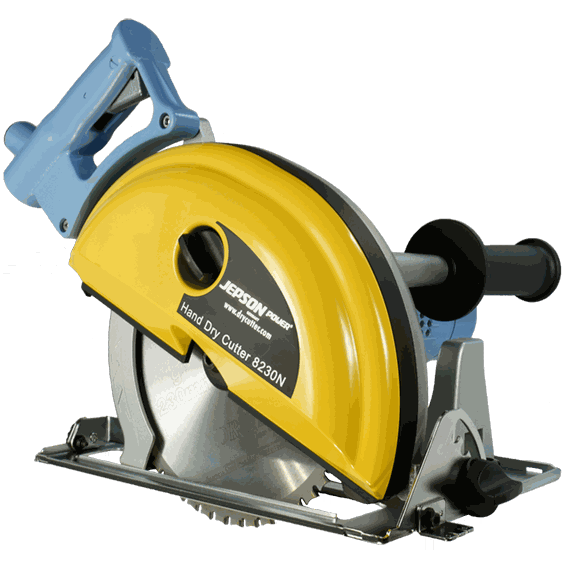

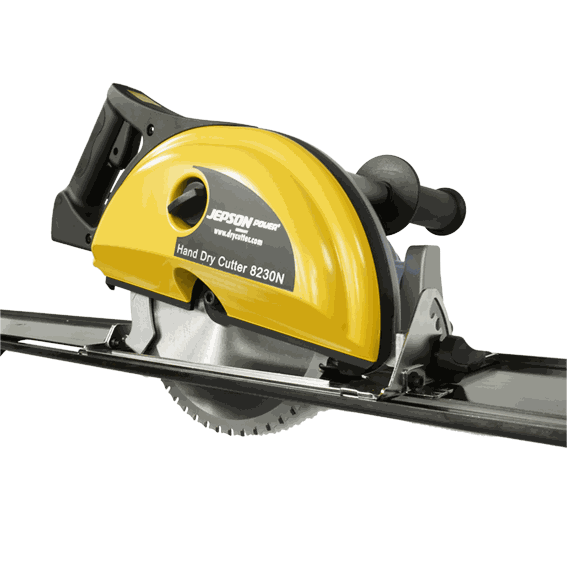

Hand Dry Cutter 8230N
is ideal for cutting
metal sheets, sandwich panels, trapezoidal sheets, steel pipes & profiles, nonferrous metals and composite materials
.
No lubrication needed thanks to our DryCutting technology
Integrated chip collector for a clean and save cutting process.
Maximum cutting depth 3,22" (2,20" for bevel cuts) and maximum thickness 0,4".
Delivery includes 9" / 48T saw blade for stainless steel
No lubrication needed thanks to our DryCutting technology
Integrated chip collector for a clean and save cutting process.
Maximum cutting depth 3,22" (2,20" for bevel cuts) and maximum thickness 0,4".
Delivery includes 9" / 48T saw blade for stainless steel
|
power input
|
15 amps |
|
voltage
|
115V/60Hz
|
|
no load speed
|
2.600 rpm |
|
net weight
|
16 lbs |
|
blade size |
9"
|
|
noise level | 88,5 db(A) |
|
vibration | 3,2 ft/s² |
|
cable length | 16,4 ft |
|
reference
|
608280IUS
|
Maximum cutting capacities in mm
|
material
|
cutting depth
|
square
|
rectangular |
round |
plane |
|
90° Cut
|
3,22" |
0,39" x 0,23" |
0,39" x 0,23" |
3,22" x 0,23" |
0,39"
|
|
45° Cut
|
2,20" |
0,31" x 0,15" |
0,31" x 0,15" |
0,31" x 0,15" |
0,31" |
SAW BLADES
DRYTECH® CARBIDE TIPPED SAW BLADES Ø 9" for HDC 8230N
fast and burr free cutting of metal without coolant!
HDC 8230N
ADVANTAGES OF OUR DRYTECH®
SAW BLADES:
- universal use on all circular saws and cut-off saws very high durability
- very high durability
-
excellent cutting quality
-
thin walled with reduced noise
-
resharpenable
|
saw blade
|
application
|
Ø [in] |
cuttin width [in] |
blade width [mm] |
teeth
|
reference | e-shop |

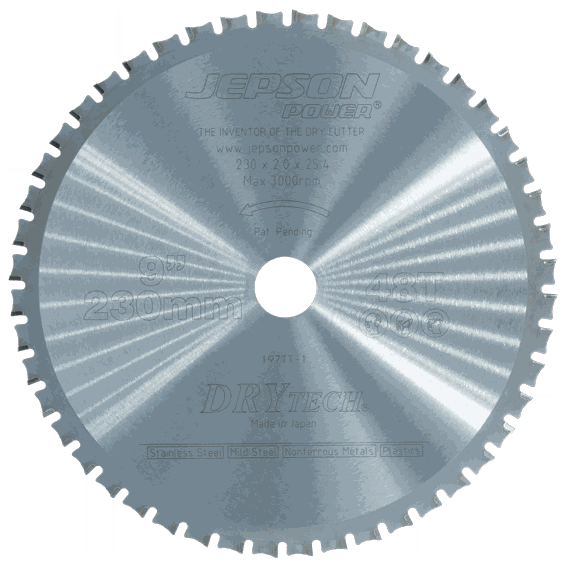

| STANDARD | steel & inox | 9" | 0,078 |
0,071 | 48 | 72123048I | |

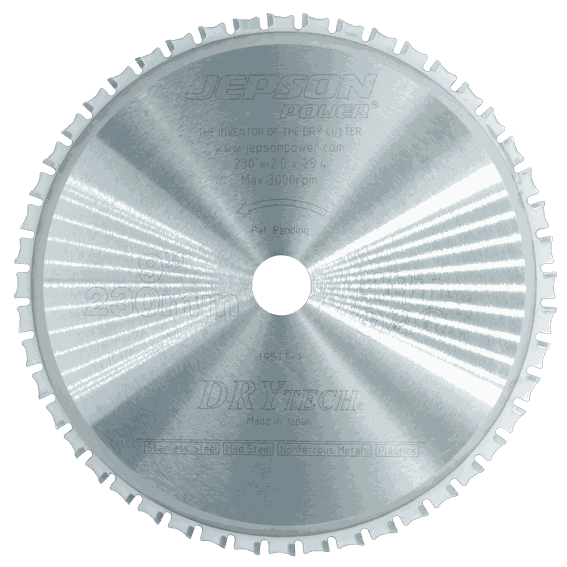

| SPECIAL-COATED |
stainless steel, steel, composite-materials, food & construction | 9" | 0,078 | 0,071 | 48 | 72123048NSF | |

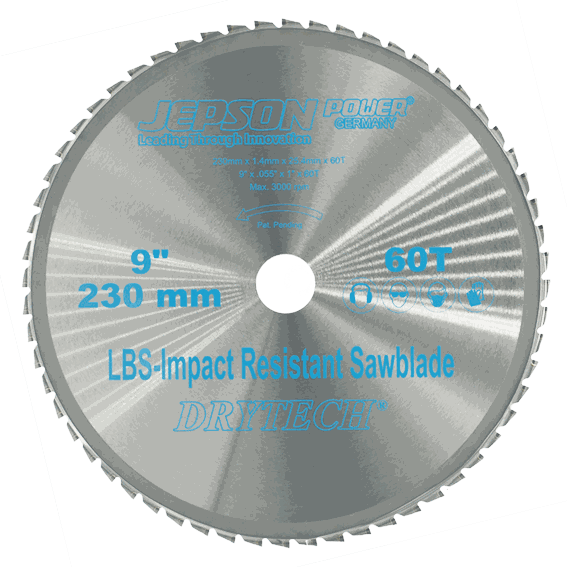

| LBS IMPACT-RESISTENT |
metal grids & grates | 9" |
0,055
|
0,047
|
60 | 72223060 | |
| FOR STEEL | steel | 9" | 0,078 | 0,071 | 48 | 72123048 | |
| FOR THINWALLED MATERIAL | steel - thinwalled | 9" | 0,078 | 0,071 | 68 | 72123068 | |
| FOR EXTRA THINWALLED MATERIAL | steel - extra thinwalled | 9" | 0,078 | 0,071 | 84 | 72123084 |
